C63000 | C63200 | C63600 | C64200 | C65500 | C95500 | C95800 | C31400 | C51000 | C53400 | C54400 | C67400 Bronze Fasteners Supplier in Mumbai
Bronze Fasteners C63000 | C63200 | C63600 | C64200 | C65500 | C95500 | C95800 | C31400 | C51000 | C53400 | C54400 | C67400 Exporter in India

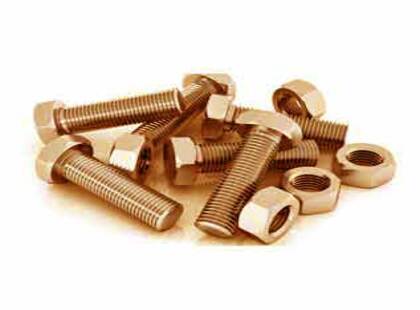

Labh Steel is a leading exporter, stockist, and supplier of high-quality **Bronze Fasteners ** in grades such as **C63000, C63200, C63600, C64200, C65500, C95500, C95800, C31400, C51000, C53400, C54400, C67400**. These Fasteners are used across various industries and are known for their excellent mechanical properties, resistance to corrosion, and outstanding performance in demanding environments. We offer them in both standard and customized sizes to meet the specific needs of our customers, ensuring that all industrial applications are catered for.
**Labh Steel** maintains stringent quality control on every batch of **Fasteners ** produced, ensuring that the products meet industry standards and specifications. Our range of **C63000, C63200, C63600, C64200, C65500, C95500, C95800, C31400, C51000, C53400, C54400, C67400** grades are suitable for a wide range of applications, including those in the **Aerospace, Marine, Oil & Gas, and Petrochemical** industries. We are committed to delivering superior quality products at competitive prices, and our customer service is second to none.
SPECIFICATION :
| Specifications : | ASME SB 152 |
| Size : | M3 - M56 | 3/6" to 2" | Custom Sizes | Length : | 2mm to 2000mm Long |
| Bolt/Screw size: | M3 to M200 & 1/8" to 10" & Custom. |
| Nuts size : | : M3 to M200 & 1/8" to 10" & Custom. |
| Washer size: | M3 to M200 & 1/8" to 10" & Custom. |
| Self-tapping screw : | No2 – No14. |
| Form : | Bolts, Nuts, Washers, Stud Bolts, Eye Bolt, Stud, Threaded Rod, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners etc |
| Applications : |
|
CHEMICAL COMPOSITION :
| Grade | Al | Cu | Fe | Pb | Mn | Ni | Si | Sn | Zn | As | Sb | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C63000 | 9.0 - 11.0 | Balance | 2.0 - 4.0 | - | 1.5 max | 4.0 - 5.5 | 0.25 max | 0.2 max | 0.3 max | - | - | - |
| C63200 | 8.7 - 9.5 | Balance | 3.5 - 4.3 | 0.02 max | 1.2 - 2.0 | 4.0 - 4.8 | 0.1 max | - | - | - | - | - |
| C63600 | 3.0-4.0 | Balance | 0.15 max | 0.05 max | - | 0.15 max | 0.7 - 1.3 | 0.2 max | 0.5 max | 0.15 max | - | - |
| C64200 | 6.3-7.6 | Balance | 0.3 max | 0.05 max | 0.1 max | 0.25 max | 1.5 - 2.2 | 0.2 max | 0.5 max | 0.15 max | - | - |
| C95500 | 10.0-11.5 | 78.0 min | 3.0-5.0 | - | 3.5 max | 3.0-5.5 | - | - | - | - | - | |
| C95800 | 8.5-9.5 | 79.0 min | 3.5-4.5 | 0.03 max | 0.8-1.5 | 4.0-5.0 | 0.1 max | - | - | - | - | - |
| C65500 | - | Balance | 0.8 max | 0.05 max | 0.50 - 1.3 | 0.6 max | 2.8 - 3.8 | - | 1.5 max | - | - | - |
| C31400 | - | 87.5 - 90.5 | 0.1 max | 1.3 - 2.5 | - | 0.7 max | - | - | Balance | - | - | - |
| C51000 | - | Rem | 0.1 max | 0.05 max | - | - | - | 4.2-5.8 | 0.30 max | - | - | 0.03-035 |
| C53400 | - | Rem | 0.1 max | 0.8 - 1.2 | - | - | - | 3.5-5.8 | 0.30 max | - | - | 0.03-0.35 |
| C54400 | - | Rem | 0.1 | 3.5 - 4.5 | - | - | - | 3.5-4.5 | 1.5-4.5 | - | - | 0.01-0.45 |
| C67400 | 0.50-1.20 | 57.0-60.0 | 0.35 max | 0.50 max | 2.0 - 3.5 | 0.25 | 0.50 - 1.5 | 0.30 max | Rem | - | - | - |
PHYSICAL INFORMATION :
| Property | C63000 | C63200 | C64200 | C95500 | C95800 | C65500 | C31400 | C51000 | C53400 | C54400 | C67400 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Melting Point - Liquidus (°F) | 1930 | 1940 | 1840 | 1930 | 1940 | 1880 | 1900 | 1920 | 1920 | 1830 | 1625 |
| Melting Point - Solidus (°F) | 1895 | 1905 | 1800 | 1900 | 1910 | 1780 | 1850 | 1750 | 1750 | 1700 | 1590 |
| Density (lb/cu in. at 68°F) | 0.274 | 0.276 | 0.278 | 0.272 | 0.276 | 0.308 | 0.319 | 0.32 | 0.32 | 0.32 | 0.2 |
| Specific Gravity | 7.58 | 7.64 | 7.69 | 7.53 | 7.64 | 8.53 | 8.83 | 8.86 | 8.86 | 8.89 | 0.292 |
| Electrical Conductivity (% IACS at 68°F) | 7 | 7 | 8 | 8 | 7 | 7 | 42 | 15 | 15 | 19 | 8.08 |
| Thermal Conductivity (Btu/sq ft/ft hr/°F at 68°F) | 22.6 | 20 | 26 | 24.2 | 20.8 | 21 | 104 | 40 | 40 | 50 | 58 |
| Coefficient of Thermal Expansion (68 – 572°F) | 9 | 9 | 10 | 9 | 9 | 10 | 10.2 | 9.9 | 9.9 | 9.6 | 11 |
| Specific Heat Capacity (Btu/lb/°F at 68°F) | 0.09 | 0.105 | 0.09 | 0.1 | 0.105 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Modulus of Elasticity in Tension (ksi) | 17500 | 17000 | 16000 | 16000 | 16500 | 15000 | 17000 | 16000 | 16000 | 15000 | 16000 |
| Modulus of Rigidity (ksi) | 6400 | 6400 | 6000 | 6000 | 6200 | 5600 | 6400 | 6000 | 6000 | 5600 | 6000 |
