C63000 | C63200 | C63600 | C64200 | C65500 | C95500 | C95800 | C31400 | C51000 | C53400 | C54400 | C67400 Bronze Flanges Supplier in Mumbai
Bronze Flanges C63000 | C63200 | C63600 | C64200 | C65500 | C95500 | C95800 | C31400 | C51000 | C53400 | C54400 | C67400 Exporter in India

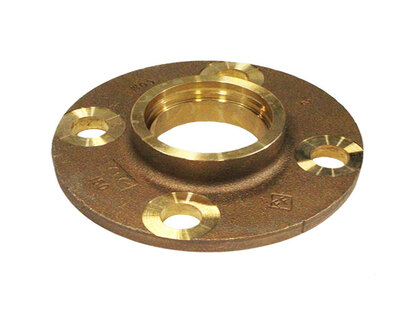

Labh Steel is a leading exporter, stockist, and supplier of high-quality **Bronze Flanges** in grades such as **C63000, C63200, C63600, C64200, C65500, C95500, C95800, C31400, C51000, C53400, C54400, C67400**. These flanges are used across various industries and are known for their excellent mechanical properties, resistance to corrosion, and outstanding performance in demanding environments. We offer them in both standard and customized sizes to meet the specific needs of our customers, ensuring that all industrial applications are catered for.
**Labh Steel** maintains stringent quality control on every batch of **Flanges** produced, ensuring that the products meet industry standards and specifications. Our range of **C63000, C63200, C63600, C64200, C65500, C95500, C95800, C31400, C51000, C53400, C54400, C67400** grades are suitable for a wide range of applications, including those in the **Aerospace, Marine, Oil & Gas, and Petrochemical** industries. We are committed to delivering superior quality products at competitive prices, and our customer service is second to none.
SPECIFICATION :
| Category | Details |
| Standard | ANSI B16.5 |
| OD Range | 3mm to 1500mm OD, 6NB to 900NB |
| Class | Class 150, Class 300, Class 600, Class 900, Class 1200, Class 1500 |
| Thickness | As per Customer Needs |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Type | Slip On, Threaded, Blind, Lapjoint, PN Flange, Welneck, Socket Weld, Spectacle Blind |
| Finish | Bright and Black |
| Applications | Aerospace, Defence, Marine, Pharmaceuticals, Food Processing, Medical, Automotive, Chemical, Heat Exchanger, Oil and Gas |
CHEMICAL COMPOSITION :
| Grade | Al | Cu | Fe | Pb | Mn | Ni | Si | Sn | Zn | As | Sb | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C63000 | 9.0 - 11.0 | Balance | 2.0 - 4.0 | - | 1.5 max | 4.0 - 5.5 | 0.25 max | 0.2 max | 0.3 max | - | - | - |
| C63200 | 8.7 - 9.5 | Balance | 3.5 - 4.3 | 0.02 max | 1.2 - 2.0 | 4.0 - 4.8 | 0.1 max | - | - | - | - | - |
| C63600 | 3.0-4.0 | Balance | 0.15 max | 0.05 max | - | 0.15 max | 0.7 - 1.3 | 0.2 max | 0.5 max | 0.15 max | - | - |
| C64200 | 6.3-7.6 | Balance | 0.3 max | 0.05 max | 0.1 max | 0.25 max | 1.5 - 2.2 | 0.2 max | 0.5 max | 0.15 max | - | - |
| C95500 | 10.0-11.5 | 78.0 min | 3.0-5.0 | - | 3.5 max | 3.0-5.5 | - | - | - | - | - | |
| C95800 | 8.5-9.5 | 79.0 min | 3.5-4.5 | 0.03 max | 0.8-1.5 | 4.0-5.0 | 0.1 max | - | - | - | - | - |
| C65500 | - | Balance | 0.8 max | 0.05 max | 0.50 - 1.3 | 0.6 max | 2.8 - 3.8 | - | 1.5 max | - | - | - |
| C31400 | - | 87.5 - 90.5 | 0.1 max | 1.3 - 2.5 | - | 0.7 max | - | - | Balance | - | - | - |
| C51000 | - | Rem | 0.1 max | 0.05 max | - | - | - | 4.2-5.8 | 0.30 max | - | - | 0.03-035 |
| C53400 | - | Rem | 0.1 max | 0.8 - 1.2 | - | - | - | 3.5-5.8 | 0.30 max | - | - | 0.03-0.35 |
| C54400 | - | Rem | 0.1 | 3.5 - 4.5 | - | - | - | 3.5-4.5 | 1.5-4.5 | - | - | 0.01-0.45 |
| C67400 | 0.50-1.20 | 57.0-60.0 | 0.35 max | 0.50 max | 2.0 - 3.5 | 0.25 | 0.50 - 1.5 | 0.30 max | Rem | - | - | - |
PHYSICAL INFORMATION :
| Property | C63000 | C63200 | C64200 | C95500 | C95800 | C65500 | C31400 | C51000 | C53400 | C54400 | C67400 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Melting Point - Liquidus (°F) | 1930 | 1940 | 1840 | 1930 | 1940 | 1880 | 1900 | 1920 | 1920 | 1830 | 1625 |
| Melting Point - Solidus (°F) | 1895 | 1905 | 1800 | 1900 | 1910 | 1780 | 1850 | 1750 | 1750 | 1700 | 1590 |
| Density (lb/cu in. at 68°F) | 0.274 | 0.276 | 0.278 | 0.272 | 0.276 | 0.308 | 0.319 | 0.32 | 0.32 | 0.32 | 0.2 |
| Specific Gravity | 7.58 | 7.64 | 7.69 | 7.53 | 7.64 | 8.53 | 8.83 | 8.86 | 8.86 | 8.89 | 0.292 |
| Electrical Conductivity (% IACS at 68°F) | 7 | 7 | 8 | 8 | 7 | 7 | 42 | 15 | 15 | 19 | 8.08 |
| Thermal Conductivity (Btu/sq ft/ft hr/°F at 68°F) | 22.6 | 20 | 26 | 24.2 | 20.8 | 21 | 104 | 40 | 40 | 50 | 58 |
| Coefficient of Thermal Expansion (68 – 572°F) | 9 | 9 | 10 | 9 | 9 | 10 | 10.2 | 9.9 | 9.9 | 9.6 | 11 |
| Specific Heat Capacity (Btu/lb/°F at 68°F) | 0.09 | 0.105 | 0.09 | 0.1 | 0.105 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Modulus of Elasticity in Tension (ksi) | 17500 | 17000 | 16000 | 16000 | 16500 | 15000 | 17000 | 16000 | 16000 | 15000 | 16000 |
| Modulus of Rigidity (ksi) | 6400 | 6400 | 6000 | 6000 | 6200 | 5600 | 6400 | 6000 | 6000 | 5600 | 6000 |
