Labh Steel Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Threaded Flanges / Screwed Flanges To Our Domestic And Overseas Customers. Flanges accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like Stainless Steel Threaded Flanges / Screwed Flanges, Carbon Steel Threaded Flanges / Screwed Flanges & Alloy Steel Threaded Flanges / Screwed Flanges. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.11 Forged Threaded Flanges / Screwed Flanges using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASME B16.11 Threaded Flanges / Screwed Flanges in Mumbai, India.

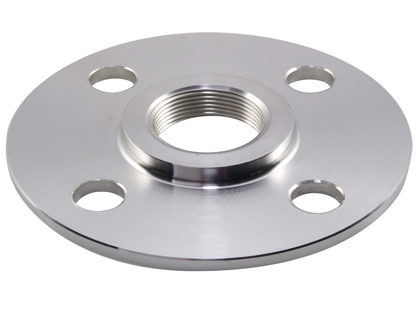

Threaded Flanges / Screwed Flanges Manufacturer & Supplier In Mumbai
ANSI 16.5 Threaded Flanges Dimensions
| Class | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| Diameter - A | 30 | 38 | 38 | 38 | 38 | 38 | 43 |
| Diameter - D | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Thickness - B | 9.6 | 12.7 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 20.7 | 28.7 | 28.7 | 36.6 | |
| Diameter - G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter - K | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Height - H | 14 | 21 | 22 | 22 | 32 | 32 | 40 |
| 15.6 | 22.6 | 28.4 | 28.4 | 38.4 | 38.4 | 46.4 | |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter - L | 15.9 | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
| Stud Bolts Diameter x Length | |||||||
| Diameter (in) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Length (mm) | 55 | 65 | 75 | 75 | 110 | 110 | 120 |
Standard Specification For Threaded Flanges / Screwed Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2" (15 NB) to 48" (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Material & Grades of Threaded Flanges / Screwed Flanges :
Stainless Steel Threaded Flanges / Screwed Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Threaded Flanges / Screwed Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Threaded Flanges / Screwed Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Threaded Flanges / Screwed Flanges : ASTM A350, LF2, LF3
Alloy Steel Threaded Flanges / Screwed Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Threaded Flanges / Screwed Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Threaded Flanges / Screwed Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
ASME B16.5 Threaded Flanges / Screwed Flanges Available Types
| Threaded Flanges Flange | Screwed Flanges |
| ANSI B16.5 Threaded Flanges | Threaded Flanges Flange Dimensions |
| ASME B16.5 Screwed Flanges | ANSI B16.5 Class 150 Threaded Flanges |
| Stainless Steel Threaded Flanges Suppliers | SS Threaded Flanges Flange |
| Threaded Flanges Plate Flanges Dealer | ASME B16.47 Series A and B Screwed Flanges Exporter |
| ANSI B16.5 class 150 Screwed Flange Stockholder | ANSI 150 Threaded Flanges Flange Distributors |
| Carbon Steel Threaded Flanges Flange | High Quality Screwed Flanges Manufacturer |
| ASTM A182 Stainless Steel Screwed Flange | Duplex Steel Threaded Flanges Flange |
| Super Duplex Steel Threaded Flanges Forged Flange | Copper Nickel Threaded Flanges Pipe Flanges |
| High Nickel Alloy Screwed Flanges | Hastelloy Flat Faced Threaded Flanges Stockist |
| Titanium ASME B16.47 Series A and B Screwed Flanges | Inconel Threaded Flanges |
ANSI B16.5 Threaded Flange Application
- Industrial Boilers
- Power Plants
- Nuclear Plants
- Oil & Gas Industry
- Refineries
- Ship Building
- Heat Exchangers
- Condensers
- Paper & Pulp
- Marine Applications
- Nuclear Power
- Fossil Fuel Power Plants
