Duplex Steel 2205 Coils |Duplex Steel 2205 Strips Stockist|Duplex Steel 2205 Foils Exporter|Duplex Steel 2205 Rolls Supplier In Mumbai.
ASME SA240|S 32205|Duplex Steel 2205 Plain End|Duplex Steel 2205Bevelled End|Duplex Steel 2205 Threaded Exporter In India|Duplex Steel 2205 Coils & Strips|ASTM A240.

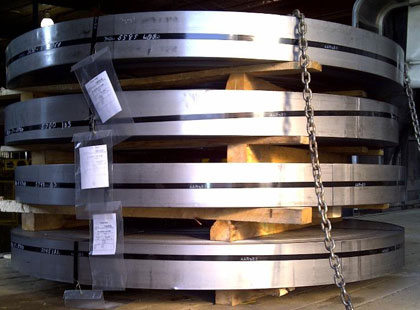

Labh Steel is one of the leading producers and suppliers of duplex 2205 coils & strips. Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades. It demonstrates good fatigue strength, as well as outstanding resistance to stress-corrosion cracking, crevice, pitting, erosion and general corrosion in severe environments.
Duplex Steel UNS S32205 Coils & Strips are frequently utilized as a part of Chemical preparing, transport, and capacity; Marine and Land freight tanks; Biofuel generation; Food handling; Pulp and Paper fabricating; Oil and gas investigation and handling; Waste administration; High chloride situations; and then some. One of the principle attractions of Duplex Steel 2205 Coils & Strips is expense – in view of the materials enlarged yield intensity it is frequently liable to reduce the thickness of material making it much low-evaluated than a relative austenitic stainless steel grade.
SPECIFICATIONS OF DUPLEX STEEL 2205 COILS & STRIPS :
| Standard : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Grade : | UNS NO. S 32205 |
| Length : | Single Random, Cut Length |
Range: |
0.3mm to 150mm |
Form: |
Coils, Foils, Rolls, Plain Sheet, Shim Sheets, Perforated Sheets, Chequered Plates, Strips, Flats, Blank (Circle), Ring (Flange) etc. |
Hardness: |
Soft, Hard, Half Hard, Spring Hard, etc. |
Finish: |
Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated). |
Other services: |
Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc. |
GRADE SPECIFICATIONS OF DUPLEX STEEL 2205 COILS & STRIPS :
| Duplex Steel | Tradename | UNS no. | Werkstoff No. |
| 2205 | 2205 Duplex Steel | S32205 / S31803 | 1.4462 |
CHEMICAL COMPOSITION OF DUPLEX STEEL 2205 COILS & STRIPS :
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
2205 (S31803) |
Min Max |
- 0.030 |
- 2.00 |
- 1.00 |
- 0.030 |
- 0.020 |
21.0 23.0 |
2.5 3.5 |
4.5 6.5 |
0.08 0.20 |
|
2205 (S32205) |
Min Max |
- 0.030 |
- 2.00 |
- 1.00 |
- 0.030 |
- 0.020 |
22.0 23.0 |
3.0 3.5 |
4.5 6.5 |
0.14 0.20 |
MECHANICAL PROPERTIES OF DUPLEX STEEL 2205 COILS & STRIPS :
|
Grade |
Tensile Strength |
Yield Strength |
Elongation |
Hardness |
|
|
Rockwell C (HR C) |
Brinell (HB) |
||||
|
2205 |
621 |
448 |
25 |
31 max |
293 max |
PHYSICAL PROPERTIES OF DUPLEX STEEL 2205 COILS & STRIPS :
|
Grade |
Density |
Elastic (GPa) |
Mean Co-eff of Thermal |
Thermal |
Specific ( J/kg.K) |
Electrical |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
2205 |
782 |
190 |
13.7 |
14.2 |
- |
19 |
- |
418 |
850 |
