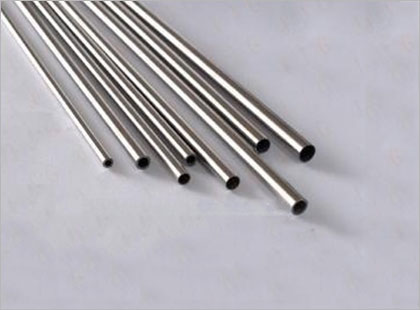

Stainless Steel 304,304L,304H Capillary Tubes|Stainless Steel 304,304L,304H Capillary Tubes Manufacturer In India|ASTM A 213 SS 304,304L,304H Capillary Tubes|ASTM A 312 Stainless Steel 304,304L,304H Capillary Tubes|DIN 1.4307 SS 304L|DIN 1.4301 SS 304|DIN 1.4948 SS 304H.
SSl 304,304L,304H Fabricated Tubes|SS 304,304L,304H Capillary Tubes Supplier In Mumbai|304 Stainless S30400|304L Stainless S30403|304H Stainless S30409|SS 304,304L,304H ERW Tubes|SS 304,304L,304H Welded Tubes|SS 304,304L,304H Semi-Seamless Tubes
Labh Steel we are Manufacturer and Exporter of Mild Steel Capillary Tubes In India, Mumbai. we produce our materials using high quality raw materials for high resistance of our product. we also provide various grades ASTMA213, ASTMA312, ASTMA269, ASTM A554, ASTM B360, ASTM B280. we also take on clients requests, as per their specifications.
These Stainless Steel 304,304L,304H Capillary Tubes can further be customized in terms of sizes as per the specific requirements of our customers.
These are also used in different industries such as Oil Refineries, Sugar Industry, Steel Plants, Medical etc. Capillary tube is one of the most frequently used for throttling devices in the air conditioning and refrigeration systems.
SPECIFICATIONS OF STAINLESS STEEL 304,304L, 304H CAPILLARY TUBES :
| Specifications : | ASTMA213, ASTMA312, ASTMA269, ASTM A554, ASTM B360, ASTM B280 |
| Wall Thickness : | 0.03 to 1.0mm SWG |
| Schedules : | 5S, 10S, 20S, 40S, XS, 80S, 100S, 120S, 160S, XXS etc. |
| Length : | 1m, 2m, 3m, 6m |
| Size : | 1/8" NB to 60" NB & 1mm OD to 1500mm OD |
| Thickness: | 0.3mm to 100mm, SCH 5, SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS, SCH XS. | Types : | Seamless, Welded, ERW, Boiler tubes, Capillary, Fabricated, Corrugated, Conduit & Large Diameter Pipes. |
| Form : | Round pipes/tubes, Square pipes/tubes, Rectangle pipes/tubes, Coiled tubes, Hydraulic tubes, Ep pipes/ tubes, etc. |
| End : | Plain end, Beveled end, Threaded end & Conduit |
GRADE SPECIFICATIONS OF STAINLESS STEEL 304,304L, 304H CAPILLARY TUBES :
| Stainless Steel | Tradename | UNS no. | Werkstoff No. |
| 304 | 304 Stainless | S30400 | 1.4301 |
| 304L | 304L Stainless | S30403 | 1.4307 |
| 304H | 304H Stainless | S30409 | 1.4948 |
CHEMICAL COMPOSITION OF STAINLESS STEEL 304,304L, 304H CAPILLARY TUBES :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
| 304L | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||
| 304H | min. | 0.04 | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | - | ||
MECHANICAL PROPERTIES OF STAINLESS STEEL 304,304L, 304H CAPILLARY TUBES :
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
PHYSICAL PROPERTIES OF STAINLESS STEEL 304,304L, 304H CAPILLARY TUBES :
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (m/m/0C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-1000C (J/kg.K) |
Electrical Resistivity (n.m) |
|||
0-1000C |
0-3150C |
0-5380C |
at 1000C |
at 5000C |
|||||
304/304L/304H |
8000 |
193 |
17.2 |
17.8 |
18.4 |
16.2 |
21.5 |
500 |
720 |
Labh Steel Supplies Stainless Steel 304,304L,304H Capillary Tubes in Agartala, Agra, Agra Rampur, Ahmedabad, Aizawl, Ajmer, Aligarh, Allahabad, Alwar, Amaravati, Ambala, Ambattur, Ambernath, Amravati, Amritsar, Aurangabad, Bangalore, Bareilly, Belgaum, Bhagalpur, Bhavnagar, Bhilai, Bhiwandi, Bhopal, Bhubaneswar, Bidhannagar, Biharsharif, Bikaner, Bilaspur, Bokaro, Chandigarh, Chennai, Chittoor, Coimbatore, Cuttack, Dahod, Davanegere, Dehradun, Delhi, Dhanbad, Dharamsala, Dindigul, Diu, Durgapur, Erode, Faridabad, Fatehpur, Gandhidham, Gandhinagar, Ghaziabad, Greater Hyderabad, Greater Mumbai, Greater Warangal, Gurgaon, Guwahati, Gwalior, Haldia, Howrah, Hubballi-Dharwad, Hyderabad, Imphal, Indore, Jabalpur, Jaipur, Jalandhar, Jammu, Jamnagar, Jamshedpur, Jhansi, Jodhpur, Junagadh, Kakinada, Kalyan-Dombivali, Kanpur, Karnal, Kavaratti, Kochi, Kohima, Kolhapur, Kolkata, Kota, Lucknow, Ludhiana, Madurai, Mehsana, Mangalore, Mangaluru, Mira-Bhayandar, Moradabad, Morbi, Mumbai, Muzaffarpur, Mysore, Nagpur, Namchi, Nasik, Navi Mumbai, NDMC, Nellore, New Delhi, New Town Kolkata, Noida, Oulgaret, Pali, Panaji, Panipat, Panvel, Pasighat, Patiala, Patna, Pimpri-Chinchwad, Port Blair, Puducherry, Pune, Raipur, Rajkot, Ranchi, Raurkela, Industrial Township, Rourkela, Sagar, Salem, Satna, Secunderabad, Shaharanpur, Shillong, Siliguri, Silvassa, Solapur, Srinagar, Surat, Thane, Thanjavur, Thiruvananthapuram, Thoothukudi, Thrissur, Tiruchirapalli, Tirunelveli, Tirupur, Tumkur, Udaipur, Ujjain, Ulhasnagar, Vadodara, Vapi, Varanasi, Vasai-Virar, Vellore, Vishakhapatnam.
Labh Steel exports Stainless Steel 304,304L,304H Capillary Tubes to Countries like India, United States, United Arab Emirates, Canada, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Saudi Arabia, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Angola, Argentina, Austria, Azerbaijan, Bangladesh, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
For further enquiries related to STAINLESS STEEL 304/304L/304H CAPILLARY TUBES kindly get back to us on :- labhsteel@yahoo.co.in or contact us on +91 9869609924
