1.4507 Super Duplex Steel Ferralium 255 SD50 Flanges Exporter|Super Duplex Steel Ferralium 255 SD50 DIN Flanges|Super Duplex Steel Ferralium 255 SD50 EN Flanges|FERRALIUM 255-SD50 S32550 Supplier In Mumbai.
ASTM A182 Super Duplex Steel Ferralium 255 SD50 Flanges|ASME SA182 Super Duplex Steel Ferralium 255 SD50 Flanges|Super Duplex Steel Ferralium 255 SD50 Flanges|Super Duplex Steel Ferralium 255 SD50 Flanges Manufacturer In India.

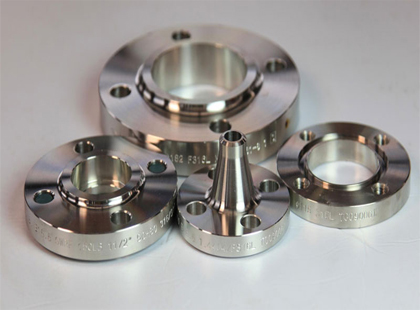

Labh Steel we are Manufacturer and Exporter of Super Duplex Steel Ferralium 255 SD50 Flanges In India, Mumbai. we produce our materials using high quality raw materials for high resistance of our product. we also provide various Standards ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges. we also take on clients requests as per their specifications.
Labh Steel offers a scope of exactness completed S32550 Super Duplex Steel Flanges to guarantee a decent stream in consistent. Our Flanges are corrosion safe and intended to work in high weight situations. Super Duplex Steel 255 Flanges have extraordinary quality completing and coercion for long life, high weight and zero deformities. We further make sure that Ferralium 255 SD50 (UNS-S32550) Super Duplex Steel Flanges is available to our customer in various sizes, shapes, dimension that to at reasonable price.
SPECIFICATION :
| Designation | ASTM A182 / ASME SA182 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size | 1/8" NB TO 24" NB |
| Grade | A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Our Duplex & Super Duplex Steel Forged Fittings conforms to NACE MR0175/ISO 15156 | |
GRADE SPECIFICATION :
| Super Duplex Steel | Tradename | UNS no. | Werkstoff No. |
| 4507 | FERRALIUM 255-SD50 | S32550 | 1.4507 |
CHEMICAL COMPOSITION :
| C | Cr | Cu | Fe | Mo | Mn | N | Ni | P | S | Si | |
| Minimum | 24.0 | 1.50 | REMAINDER | 2.90 | 0.10 | 4.50 | |||||
| Maximum | 0.040 | 27.00 | 2.50 | 3.90 | 1.50 | 0.25 | 6.50 | 0.040 | 0.030 | 1.00 |
MECHANICAL PROPERTIES :
| 0.2% Proof Stress (N/mm2 )[ksi] minimum | 550 [79.8] |
| Ultimate Tensile Strength (N/mm2) [ksi] minimum | 760 [110.3] |
| Elongation (%) minimum | 25 |
| Hardness (HBN) | 270max |
| Charpy V-notch Impact at ambient Temp (J) [ft.lb] | 80min [59min] |
| Charpy V-notch Impact at -46°C (J) [ft.lb] | 45av, 35min [33av, 25.8min] |
PHYSICAL PROPERTIES :
| Density (Kg.m-1) | 78.1 |
| Magnetic Permeability | 33 |
| Young’s Modulus (N/mm2) | 199 x 103 |
| Specific Heat, 20°C (J.Kg-1.°K-1) | 475 |
| Fracture Toughness, KQ (MPa.m½) | 98 |
| Specific Electrical Resistance, 20°C (µO.m) | 0.80 |
| Thermal conductivity, 20°C (W.m-1.°K-1) | 14.2 |
| Mean coefficient of thermal expansion, 20-100°C (°K-1) | 11.1 x 10-6 |
Labh Steel Supplies Super Duplex Steel Ferralium 255 SD50 Flanges in Agartala, Agra, Agra Rampur, Ahmedabad, Aizawl, Ajmer, Aligarh, Allahabad, Alwar, Amaravati, Ambala, Ambattur, Ambernath, Amravati, Amritsar, Aurangabad, Bangalore, Bareilly, Belgaum, Bhagalpur, Bhavnagar, Bhilai, Bhiwandi, Bhopal, Bhubaneswar, Bidhannagar, Biharsharif, Bikaner, Bilaspur, Bokaro, Chandigarh, Chennai, Chittoor, Coimbatore, Cuttack, Dahod, Davanegere, Dehradun, Delhi, Dhanbad, Dharamsala, Dindigul, Diu, Durgapur, Erode, Faridabad, Fatehpur, Gandhidham, Gandhinagar, Ghaziabad, Greater Hyderabad, Greater Mumbai, Greater Warangal, Gurgaon, Guwahati, Gwalior, Haldia, Howrah, Hubballi-Dharwad, Hyderabad, Imphal, Indore, Jabalpur, Jaipur, Jalandhar, Jammu, Jamnagar, Jamshedpur, Jhansi, Jodhpur, Junagadh, Kakinada, Kalyan-Dombivali, Kanpur, Karnal, Kavaratti, Kochi, Kohima, Kolhapur, Kolkata, Kota, Lucknow, Ludhiana, Madurai, Mehsana, Mangalore, Mangaluru, Mira-Bhayandar, Moradabad, Morbi, Mumbai, Muzaffarpur, Mysore, Nagpur, Namchi, Nasik, Navi Mumbai, NDMC, Nellore, New Delhi, New Town Kolkata, Noida, Oulgaret, Pali, Panaji, Panipat, Panvel, Pasighat, Patiala, Patna, Pimpri-Chinchwad, Port Blair, Puducherry, Pune, Raipur, Rajkot, Ranchi, Raurkela, Industrial Township, Rourkela, Sagar, Salem, Satna, Secunderabad, Shaharanpur, Shillong, Siliguri, Silvassa, Solapur, Srinagar, Surat, Thane, Thanjavur, Thiruvananthapuram, Thoothukudi, Thrissur, Tiruchirapalli, Tirunelveli, Tirupur, Tumkur, Udaipur, Ujjain, Ulhasnagar, Vadodara, Vapi, Varanasi, Vasai-Virar, Vellore, Vishakhapatnam.
Labh Steel exports Super Duplex Steel Ferralium 255 SD50 Flanges to Countries like India, United States, United Arab Emirates, Canada, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Saudi Arabia, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Angola, Argentina, Austria, Azerbaijan, Bangladesh, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
For further enquiries related to SUPER DUPLEX STEEL FERRALIUM 255 SD50 FLANGES kindly get back to us on :- labhsteel@yahoo.co.in or contact us on +91 9869609924
