Hastelloy Alloy C22 Forged Fittings

  1. Products
  2. Hastelloy Alloy
  3. Hastelloy Alloy C22 Forged Fittings

Hastelloy Alloy C22 Forged Socket Weld Fittings|Hastelloy Alloy C22 Forged SCREWED Fittings|Hastelloy Alloy C22 Forged NPT Fittings|Hastelloy Alloy C22 Forged BSP Fittings|Hastelloy C22 N06022|Hastelloy Alloy C22 Forged Fitting Supplier In India.



ANSI B16.11 Hastelloy Alloy C22 Forged Fitting|ASME BS3799 Hastelloy Alloy C22 Forged Fittings|2.4602 Hastelloy C22 Exporter|Hastelloy Alloy C22 Forged Fitting|Hastelloy Alloy C22 Forged Fittings Manufacturer In India.

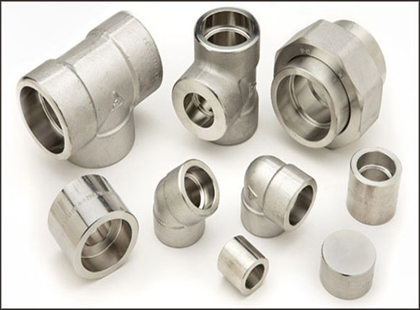

Hastelloy Alloy C22 Forged Fittings Manufacturer Supplier Exporter

Labh Steel we are an outstanding producer of Hastelloy Forged Fittings manufactured in different evaluations of Hastelloy. These are fabricated utilizing innovative innovation, top class crude material and productive machines. These items come in various particulars and are accessible at industry driving costs. We offer these products with different qualities like corrosion resistance, exactness, solidness and complete leak proof. These products are made according to the customer's particular prerequisites.

We offer the same in various sorts, for example, Hastelloy C22 Forged Socket Weld Elbow, Hastelloy C22 Forged Threaded Tee, Hastelloy C22 Forged Socket Weld Cross, Hastelloy C22 Forged Threaded Couplings etc. Our offered Alloy C22 Forged Fittings (WNR 2.4602) is being created and outlined in agreement by method for the worldwide nature of norms at our foundation office for to achieve the most noteworthy sizes of value.

SPECIFICATION :

Standards ANSI/ASME B16.11 & BS3799, etc.
Specifications ASTM B564 / ASME SB564
Size 1/8" to 4"
Class 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.
Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings

GRADE SPECIFICATION :

Hastelloy Tradename UNS no. Werkstoff No.
C22 Hastelloy C22 N06022 2.4602

CHEMICAL COMPOSITION :

Element Min Max
Molybdenum 12.5 14.5
Chromium 20.0 22.5
Iron 2.00 6.00
Tungsten 2.50 3.50
Cobalt -- 2.50
Carbon -- 0.010
Silicon -- 0.08
Manganese -- 0.50
Vanadium -- 0.35
Phosphorus -- 0.025
Sulfur -- 0.010

MECHANICAL PROPERTIES :

Product Form Tensile (ksi) .2% Yield (ksi) Elongation % Hardness (HRb)
Plate (.25”-1.75”) 112 53 62 89
Sheet (.038”-.15”) 122 63 54 93
Bar (.50”-5.50”) 115 55 60 89

PHYSICAL PROPERTIES :

Density 0.314 lb/in3
Specific Gravity 8.69 lb/in3
Specific Heat (Btu/lb/Deg F - [32-212 Deg F] 0.1
Melting Point (Deg F) 2550
Thermal Conductivity 70
Mean Coeff Thermal Expansion 6.9
Modulus of Elasticity Tension 29.9

Labh Steel Supplies Hastelloy Alloy C22 Forged Fittings in Agartala, Agra, Agra Rampur, Ahmedabad, Aizawl, Ajmer, Aligarh, Allahabad, Alwar, Amaravati, Ambala, Ambattur, Ambernath, Amravati, Amritsar, Aurangabad, Bangalore, Bareilly, Belgaum, Bhagalpur, Bhavnagar, Bhilai, Bhiwandi, Bhopal, Bhubaneswar, Bidhannagar, Biharsharif, Bikaner, Bilaspur, Bokaro, Chandigarh, Chennai, Chittoor, Coimbatore, Cuttack, Dahod, Davanegere, Dehradun, Delhi, Dhanbad, Dharamsala, Dindigul, Diu, Durgapur, Erode, Faridabad, Fatehpur, Gandhidham, Gandhinagar, Ghaziabad, Greater Hyderabad, Greater Mumbai, Greater Warangal, Gurgaon, Guwahati, Gwalior, Haldia, Howrah, Hubballi-Dharwad, Hyderabad, Imphal, Indore, Jabalpur, Jaipur, Jalandhar, Jammu, Jamnagar, Jamshedpur, Jhansi, Jodhpur, Junagadh, Kakinada, Kalyan-Dombivali, Kanpur, Karnal, Kavaratti, Kochi, Kohima, Kolhapur, Kolkata, Kota, Lucknow, Ludhiana, Madurai, Mehsana, Mangalore, Mangaluru, Mira-Bhayandar, Moradabad, Morbi, Mumbai, Muzaffarpur, Mysore, Nagpur, Namchi, Nasik, Navi Mumbai, NDMC, Nellore, New Delhi, New Town Kolkata, Noida, Oulgaret, Pali, Panaji, Panipat, Panvel, Pasighat, Patiala, Patna, Pimpri-Chinchwad, Port Blair, Puducherry, Pune, Raipur, Rajkot, Ranchi, Raurkela, Industrial Township, Rourkela, Sagar, Salem, Satna, Secunderabad, Shaharanpur, Shillong, Siliguri, Silvassa, Solapur, Srinagar, Surat, Thane, Thanjavur, Thiruvananthapuram, Thoothukudi, Thrissur, Tiruchirapalli, Tirunelveli, Tirupur, Tumkur, Udaipur, Ujjain, Ulhasnagar, Vadodara, Vapi, Varanasi, Vasai-Virar, Vellore, Vishakhapatnam.


Labh Steel exports Hastelloy Alloy C22 Forged Fittings to Countries like India, United States, United Arab Emirates, Canada, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Saudi Arabia, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Angola, Argentina, Austria, Azerbaijan, Bangladesh, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
