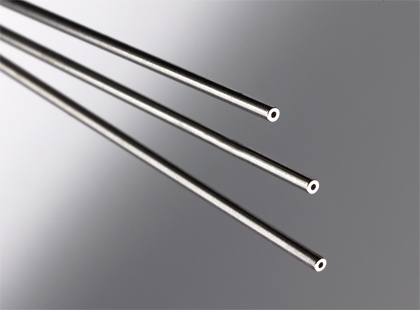

Labh Steel is a prestigious organization that is relatively engaged in offering a wide range of Hastelloy C276 Tubes. It is generally considered the most versatile heat resistant and corrosion resistant alloy available. Alloy C-276 offers excellent resistance to pitting, stress-corrosion cracking, and high temperature atmospheres. Additionally, due to its low carbon content, C-276 resists the formation of grain boundary precipitates in the weld-affected zone making it useful for applications in the as-welded condition.
We offer these Hastelloy C22 Capillary Tube in hand crafted shapes and sizes according to the prerequisites given by our customers, and that too at a moderate and market driving costs.
ASTM B622/B626 Hastelloy C276 Capillary Tube can oppose low temperature forceful consumption situations, and antagonistic high temperature situations. The amazing weldability of the combination, and its capacity to be joined effectively to different compounds with various arrangements.
SPECIFICATION :
| Standard | ASTM B161, B165, B167, B407, B423, B622, B619, B612, B725, B775, B626. |
|---|---|
| Outside Diameter | 0.20mm to 12.0mm |
| Size : | 1/8" NB to 60" NB & 1mm OD to 1500mm OD |
| Thickness: | 0.3mm to 100mm, SCH 5, SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS, SCH XS. | Types : | Seamless, Welded, ERW, Boiler tubes, Capillary, Fabricated, Corrugated, Conduit & Large Diameter Pipes. |
| Form : | Round pipes/tubes, Square pipes/tubes, Rectangle pipes/tubes, Coiled tubes, Hydraulic tubes, Ep pipes/ tubes, etc. |
| End : | Plain end, Beveled end, Threaded end & Conduit |
| Length | 1000mm to 6000mm |
| Application | Chemical processes, Electronic Industries, Soap Industries, Aerospace Industries, Food Industries, Fabrication Industries. |
GRADE SPECIFICATION :
| Hastelloy | Tradename | UNS no. | Werkstoff No. |
| C276 | Hastelloy C276 | N10276 | 2.4819 |
CHEMICAL COMPOSITION :
| Element | Min | Max |
|---|---|---|
| Molybdenum | 15.0 | 17.0 |
| Chromium | 14.5 | 16.5 |
| Iron | 4.0 | 7.0 |
| Tungsten | 3.0 | 4.5 |
| Cobalt | -- | 2.50 |
| Manganese | -- | 2.5 |
| Carbon | -- | 1.0 |
| Vanadium | -- | .01 |
| Phosphorus | -- | 35 max |
| Sulfur | -- | .04 max |
| Silicon | -- | .03 max |
| Sulfur | -- | .08 max |
MECHANICAL PROPERTIES :
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
PHYSICAL PROPERTIES :
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
