Hastelloy C276 N10276 Sheets & Plates|Hastelloy Alloy C276 Coils| Hastelloy Alloy C276 Flat|Hastelloy Alloy C276 Strips|Hastelloy Alloy C276 Blank|Hastelloy Alloy C276 Ring| 2.4819 Hastelloy Alloy C276 Stockist|Hastelloy Alloy C276 Sheets & Plates Supplier In India.
Hastelloy Alloy C276 Sheets & Plates|ASME SB 575 Hastelloy Alloy C276 Sheets & Plates Exporter| Hastelloy Alloy C276 Sheets|Hastelloy Alloy C276 Plates|Hastelloy Alloy C276 Sheets & Plates Exporter In India|ASTM A 575 Hastelloy Alloy C276 Sheets & Plates.

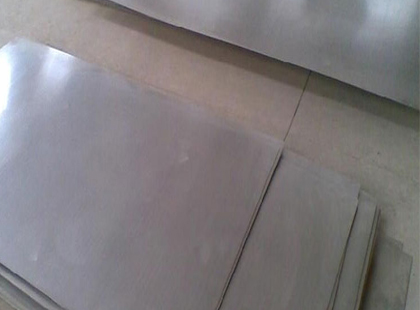

Labh Steel is considered one of the special stockist, trader, exporters and supplier of Hastelloy C276 Sheets and Plates. we carry a full inventory of Hastelloy C276 Pipes and Tube and Supply Alloy C276 Pipes and Tube products is a a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.
Our offered Alloy C276 Sheets and Plates (WNR 2.4819) is being produced and composed in understanding by method for the worldwide nature of norms at our base office for to achieve the most noteworthy sizes of value. We further ensure that our offered Hastelloy C276 Sheets and Plates (UNS N10276) experiences different level of value testing and it is given to our client as per their requirements.
SPECIFICATION :
| Standard | ASTM / ASME SB 575 |
|---|---|
| Grade | Hastelloy C276 (UNS No. N10276) Sheets & Plates | Range : | 0.3mm to 150mm |
| Hardness : | Hardness: Soft, Hard, Half Hard, Spring Hard, etc. |
| Finish : | Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated). |
| Form: | Coils, Foils, Rolls, Plain Sheet, Shim Sheets, Perforated Sheets, Chequered Plates, Strips, Flats, Blank (Circle), Ring (Flange) etc. |
| Other services : | Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc. |
| Application | Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings, Flue gas desulfurization systems, Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping, Sour gas wells, Pulp and paper production, Waste treatment, Pharmaceutical and food processing equipment. |
GRADE SPECIFICATION :
| Hastelloy | Tradename | UNS no. | Werkstoff No. |
| C276 | Hastelloy C276 | N10276 | 2.4819 |
CHEMICAL COMPOSITION :
| Element | Min | Max |
|---|---|---|
| Molybdenum | 15.0 | 17.0 |
| Chromium | 14.5 | 16.5 |
| Iron | 4.0 | 7.0 |
| Tungsten | 3.0 | 4.5 |
| Cobalt | -- | 2.50 |
| Manganese | -- | 2.5 |
| Carbon | -- | 1.0 |
| Vanadium | -- | .01 |
| Phosphorus | -- | 35 max |
| Sulfur | -- | .04 max |
| Silicon | -- | .03 max |
| Sulfur | -- | .08 max |
MECHANICAL PROPERTIES :
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
PHYSICAL PROPERTIES :
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
