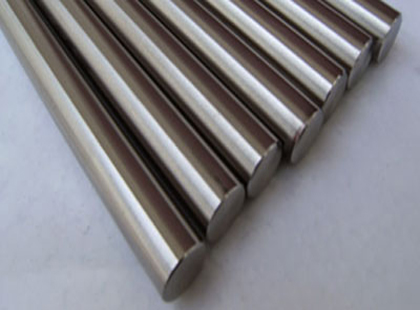

Hastelloy Alloy C276 Round & Flat Bars Manufacturer Supplier Exporter

Labh Steel is considered one of the favored makers, broker, exporters and supplier of a commendable scope of Hastelloy C276 Round Bars. This Hastelloy C276 Round & Flat Bars are being supplied and traded by us to our esteemed customers in market leading prices. Wrought forms of Alloy C276 Round & Flat Bars (UNS N10276) are furnished in the solution heat-treated condition unless otherwise specified. All of the common methods of welding can be used, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is for use in corrosion service. Inconel C276 Flat Bars are used for Stack liners, Ducts, Dampers, Scrubbers, and so on. The alloy tends to work harden but with the proper care, the alloy is readily hot and cold formedwe also offers these products in made-to-order sizes and shapes with respect to highest international standard quality.

Our offered Alloy C276 Rods (WNR 2.4819) is being created and planned in agreement by method for the universal nature of principles at our foundation office for to achieve the most astounding sizes of value. We further ensure that our offered Alloy C276 Round & Flat Bars(WNR 2.4819) experiences different level of value testing and additionally it is given to our client as indicated by their essentials.

SPECIFICATION :

Standard ASTM / ASME SB 574, ASTM / ASME SB 335, ASTM / ASME SB 572
Length : 50mm to 6200mm Long, Custom cut lengths.
Range : 1mm to 400mm
Finish : Black, Bright, Annealed & Polished.
Form : Round, Square, Hex, Rectangle, Wire-mesh, Forged, etc.
Application Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings, Flue gas desulfurization systems, Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping, Sour gas wells, Pulp and paper production, Waste treatment, Pharmaceutical and food processing equipment.

GRADE SPECIFICATION :

Hastelloy Tradename UNS no. Werkstoff No.
C276 Hastelloy C276 N10276 2.4819

CHEMICAL COMPOSITION :

Element Min Max
Molybdenum 15.0 17.0
Chromium 14.5 16.5
Iron 4.0 7.0
Tungsten 3.0 4.5
Cobalt -- 2.50
Manganese -- 2.5
Carbon -- 1.0
Vanadium -- .01
Phosphorus -- 35 max
Sulfur -- .04 max
Silicon -- .03 max
Sulfur -- .08 max

MECHANICAL PROPERTIES :

Product Form Tensile (ksi) .2% Yield (ksi) Elongation %
Bar 110.0 52.6 62
Plate 107.4 50.3 67
Sheet 115.5 54.6 60
Tube & Pipe 105.4 45.4 70

PHYSICAL PROPERTIES :

Physical Property Temp., °F British Units Temp., °C Metric Units
Density 72 0.321 lb/in.3 22 8.89 g/cm.3
Melting Range 2415-2500 1323-1371
Electrical Resistivity 75 51 microhm-in. 24 1.30 microhm-m
Mean Coefficient of
Thermal Expansion
75-200 6.2 microinches/in.-°F 24-93 11.2 x 10-6 m/m•K
75-400 6.7 microinches/in.-°F 24-204 12.0 x 10-6 m/m•K
75-600 7.1 microinches/in.-°F 24-316 12.8 x 10-6 m/m•K
75-800 7.3 microinches/in.-°F 24-427 13.2 x 10-6 m/m•K
75-1000 7.4 microinches/in.-°F 24-538 13.4 x 10-6 m/m•K
Thermal Conductivity -270 50 Btu-in./ft.2 hr.-°F -168 7.2 W/m•K
-100 60 Btu-in./ft.2 hr.-°F -73 8.6 W/m•K
0 65 Btu-in./ft.2 hr.-°F -18 9.4 W/m•K
100 71 Btu-in./ft.2 hr.-°F 38 10.2 W/m•K
200 77 Btu-in./ft.2 hr.-°F 93 11.1 W/m•K
400 90 Btu-in./ft.2 hr.-°F 204 13.0 W/m•K
600 104 Btu-in./ft.2 hr.-°F 316 15.0 W/m•K
800 117 Btu-in./ft.2 hr.-°F 427 16.9 W/m•K
1000 132 Btu-in./ft.2 hr.-°F 538 19.0 W/m•K
Specific Heat
(Calculated)
Room 0.102 Btu/lb.-°F Room 427 J/kg•K
